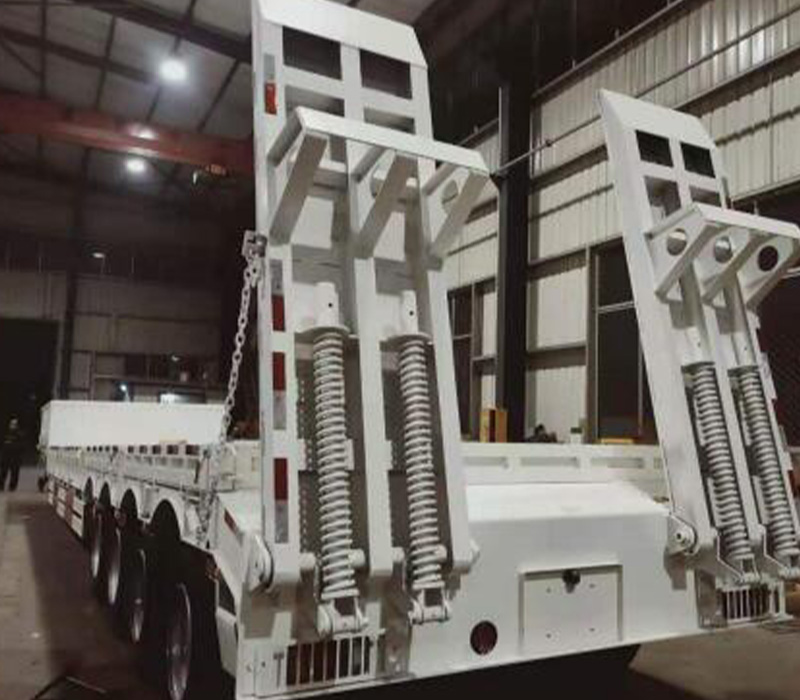

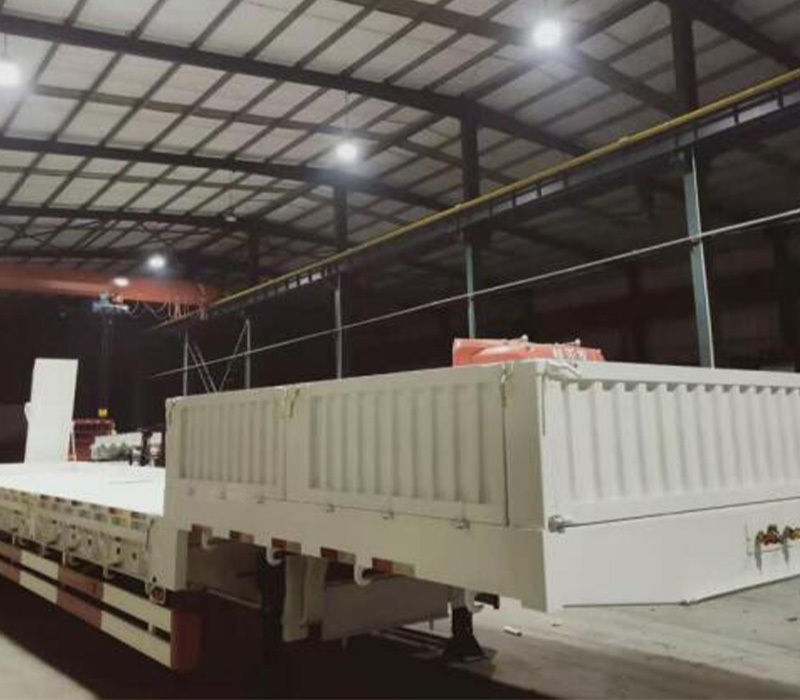

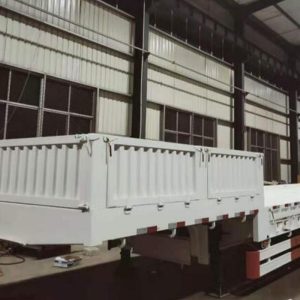

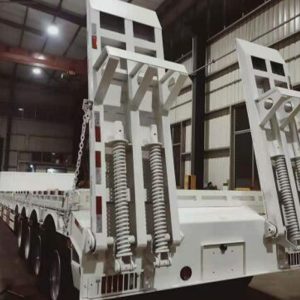

SINOTRUK 4 AXLES LOWBED SEMI-TRAILER(Special type)

The special-type designation means business — this SINOTRUK 4 Axles Lowbed Semi-Trailer pushes the lowbed format to 70 tonnes with a goose-neck structure, exposed-wheel layout, and four-axle balanced suspension built for the most extreme oversized hauls. Energy project equipment, heavy steel consignments, and large-scale machinery transfers are its natural territory.

● Product Type: Low‑bed Semi‑trailer
● Core Application: For highway transportation of heavy‑duty construction machinery, large‑size equipment and over‑dimension cargo
● Application Scenarios: Construction sites, large‑equipment transshipment, over‑size cargo logistics parks, energy project construction sites, steel transportation bases
● Product Features: Low‑loading‑deck design, high‑strength frame, multi‑axle balanced suspension, gooseneck structure, exposed‑tire layout
● Key Advantages: High load‑bearing capacity, superior transport stability, adaptability to complex road conditions, easy loading and unloading, low maintenance costs
● Load‑bearing Capacity: 70 tons

Chat Now

Description

Product Details

Drive type/Number of wheels/Number of axles: 4 axles
Dimensions: 14m
Traction pin: 90# or 50# traction pin
Tires: 12R22.5
Color: China Red / Engineering Yellow (optional)
Certifications: ISO9001, 3C
Packaging/Shipping method: Bare vehicle transport, Ro-Ro/Bulk carrier sea freight
Delivery time: 25 working days after prepayment
Additional services: Customized modification, nationwide warranty, color customization, door-to-door delivery

Product Parameters

Product name	SINOTRUK 4 AXLES LOWBED SEMI-TRAILER
Function	for loading bulldozers, angledozers, graders, scrapers, excavators, wheel loader etc.
Color	Optional (Red, White, Yellow, Blue)
Axle	FUWA brand, 13000kgX4
Main Frame	Manganese steel plate, strengthen model.
Suspension	leaf spring, 10 pieces mechnical suspension.
Landing gear	28T heavy duty landing gear.
Kingpin	90# or 50#.
Tires	12R22.5 tubeless tires, 16 pieces.
Container Lock	12 sets, Equipped with rope hook.
Pneumatic braking system	with emergency brake and parking brake.
Others	Professional 24V electrical circuit system; Whole LED lamps; whole tools for trailer.
Spare tires carrier	two set
Tool box	one set
Ladder	With strengthen ladder at rear.
Platform dimension (LxWxH)	12300X3400X1300mm Add 200mm at each side; with gooseneck, same width for front and rear; Front gooseneck with plate.
Overall dimension (LxWxH)	16600X3400X1900
Loading capacity	70ton
