HOWO NX 6×4 380HP DUMP TRUCK

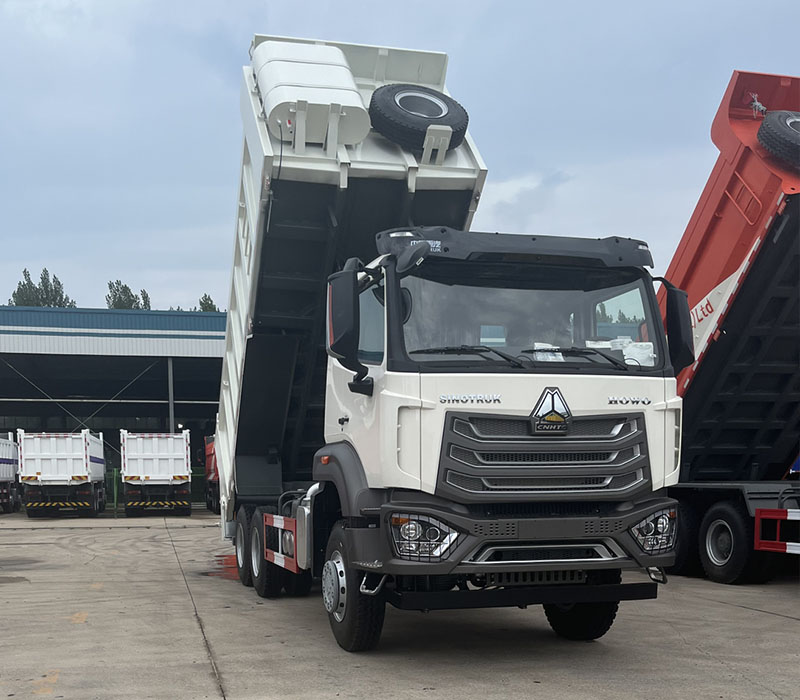

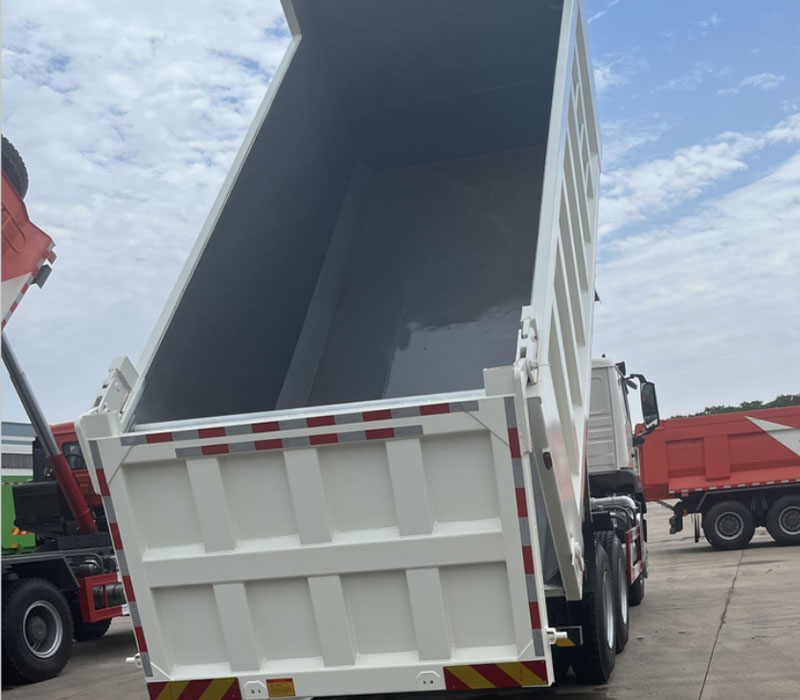

HOWO NX 6×4 380HP DUMP TRUCK
The HOWO NX 6×4 380HP Dump Truck balances raw hauling power with fuel-conscious lightweight engineering. A 25-tonne capacity, reinforced axles, and an efficient hydraulic tipping system handle quarries, earthworks, and urban construction sites — while the NX platform's refined structure keeps operating costs in check over the long run
- Product Type: Dump Truck
- Core Uses: Heavy-duty transportation and self-unloading of bulk materials such as earth, rock, sand, and gravel.
- Application Scenarios: Material transfer in mining operations, earthwork removal at construction sites, waste transportation in urban infrastructure projects, material distribution at sand and gravel quarries, and earthwork operations in water conservancy projects.
- Load Capacity: Approx. 25 tons (cargo box volume approx. 20-25 cubic meters)
-

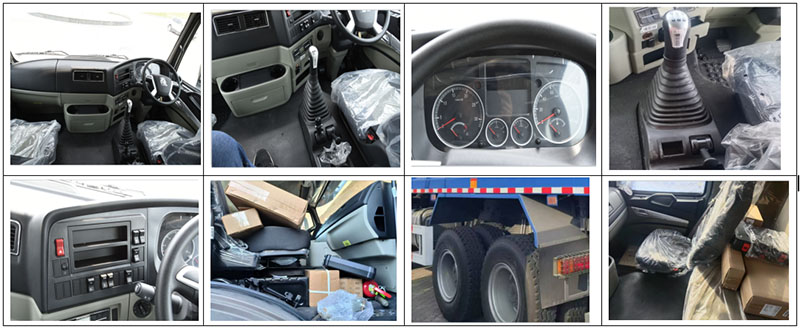

Product Details
Product Features: 6×4 drive configuration, adaptable to complex road conditions; 380hp high-torque diesel engine for ample power; high-strength heavy-duty chassis and reinforced axles; large-capacity cargo box (approx. 20-25 cubic meters); equipped with a hydraulic self-unloading system for efficient unloading; lightweight design balancing load capacity and fuel economy.
Main Advantages: Strong load-bearing capacity, suitable for heavy-duty operations; robust and durable chassis, resistant to bumps and wear; fast power response; excellent climbing and starting performance; convenient maintenance; highly versatile parts; adaptable to harsh working conditions such as mines and construction sites.
-

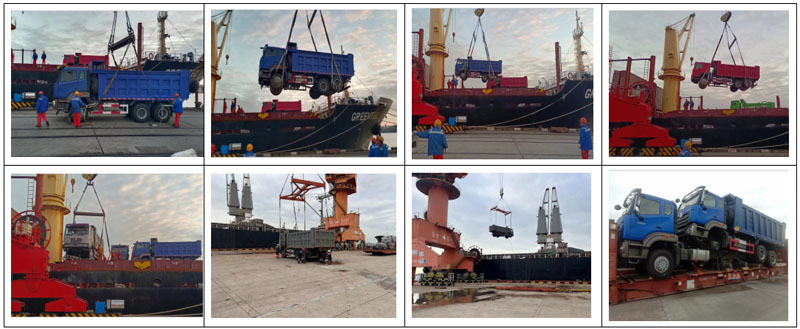

Shipping at China loading port
Drive type/Number of wheels/Number of axles: 6×4 / 10 wheels / 3 axles
Horsepower: 380HP
Transmission: HW19712, 10 forward gears + 2 reverse gears
Rear axle: HC16, 2×16000KGS (dual 16-ton wheel-side reduction axles)
Color: Engineering Yellow / China Red / White (customizable)
Certifications: ISO/3C/BV/IFA/SGS
Packaging/Shipping Method: Unloaded vehicle or waxed vehicle; Ro-Ro or bulk carrier shipping
Delivery Time: 45 working days after prepayment
Additional Services: Customized packaging and shipping; nationwide warranty; custom configuration; color options
| Vehicle Model | ZZ3257V384JB1 |
| Engine Model | WEICHAI, WP10.380E22 |
| Net Power (kW) / Speed (r/min) | 276kW / 1900r/min |
| Maximum Torque (Nm) / Speed (r/min) | 1760Nm / 1000-1400r/min |
| Cabin | HW76 Cab with Bunk (Hydraulic Tilt, with Air Conditioner) |
| Rear Axle Model | HC16 Tandem Axle |
| Rear Axle Speed Ratio | 5.26 |
| Oil Tank (L) | 300L |
| Frame Section (mm) | 320×90×8mm |
| Tires | 12.00R20 |
| Overall Dimension (L×W×H, mm) | 5600×2300×1500mm (20m³) |
| Others | Hydraulic Tipper System, Cargo Box Capacity 20-25m³ (Customizable); Optional ABS, Retarder, Power Take-off (PTO) |
