HOWO TX 6X4 340HP DUMP TRUCK

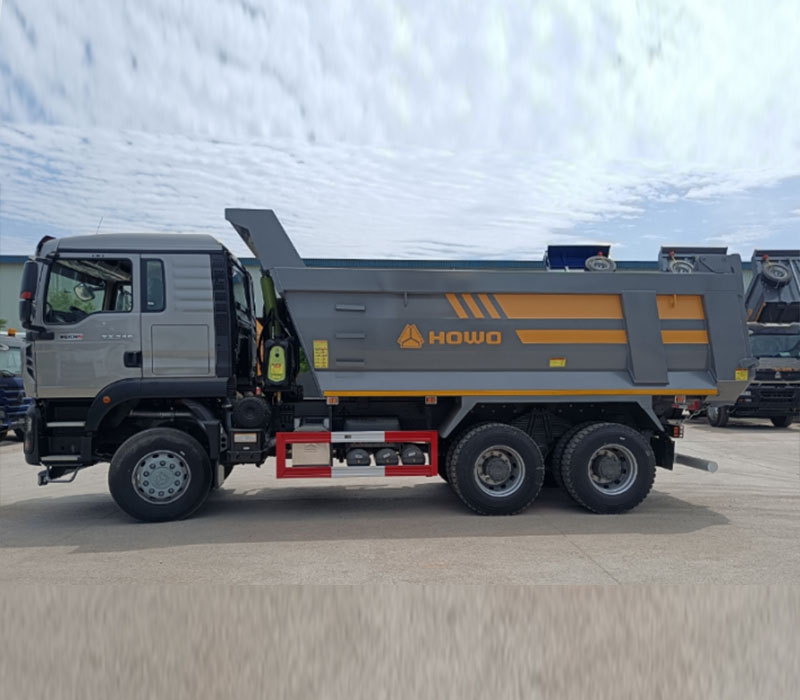

HOWO TX 6X4 340HP DUMP TRUCK
The HOWO TX 6×4 340HP Dump Truck puts the premium TX cab on a proven heavy-duty dump platform — giving operators better comfort and safety without stepping up to a higher-displacement engine. With a 20-tonne payload, 18–22CBM box, and fast hydraulic tipping, it handles quarries, earthworks, and urban spoil runs efficiently.
- Product Type: Dump Truck
- Core Uses: Heavy-duty transportation and self-unloading of bulk materials such as earth, rock, sand, and gravel.
- Application Scenarios: Material transfer in mining operations, earthwork removal at construction sites, waste transportation in urban infrastructure projects, material distribution at sand and gravel quarries, and earthwork operations in water conservancy projects.
- Load Capacity: Approx. 20 tons (rated gross vehicle weight approx. 25 tons)
-
Product Details
Product Features: 6×4 drive configuration, adaptable to complex road conditions; 340hp high-torque diesel engine for ample power; high-strength heavy-duty chassis and reinforced axles; large-capacity cargo box (approx. 18-22 cubic meters); equipped with a hydraulic self-unloading system for efficient unloading; TX series cab for enhanced comfort and safety.
Main Advantages: High load-bearing capacity, suitable for heavy-duty operations; robust and durable chassis, resistant to bumps and wear; fast power response, excellent climbing and starting performance; convenient maintenance; highly versatile parts; adaptable to harsh working conditions such as mines and construction sites.
-
Shipping at China loading port
Drive type/Number of wheels/Number of axles: 6×4 / 10 wheels / 3 axles
Horsepower: 340HP
Transmission: HW19710, 10 forward gears + 2 reverse gears
Rear axle: HC16, 2×16000KGS
Colors: Engineering yellow, red, white (customizable)
Certifications: ISO/3C/BV/IFA/SGS
Packaging/Shipping Method: Unloaded or waxed vehicle; Ro-Ro or bulk carrier shipping
Delivery Time: 20 working days after prepayment
Additional Services: Customized packaging and shipping methods, after-sales service, customized special configurations, color options
| Vehicle Model | ZZ3257N384GB1 |
| Engine Model | WEICHAI WP10.340E22 |
| Net Power (kW) / Speed (r/min) | 247kW / 1900r/min |
| Maximum Torque (Nm) / Speed (r/min) | 1500Nm / 1000-1400r/min |
| Cabin | TX7 High-roof Cabin (with Bunk, Hydraulic Tilt, Air Conditioner, Multimedia System) |
| Rear Axle Model | HC16 |
| Rear Axle Speed Ratio | 5.26 |
| Fuel Tank (L) | 400L |
| Frame Section (mm) | 320×90×8mm |
| Tires | 12.00R20 |
| Overall Dimension (L×W×H, mm) | 8350×2600×3450mm |
| Others | Hydraulic Front/Top Tipping System, Cargo Box Volume 18-22m³ (Customizable); Optional ABS, Retarder, Power Take-off, Reverse Camera, etc. |
