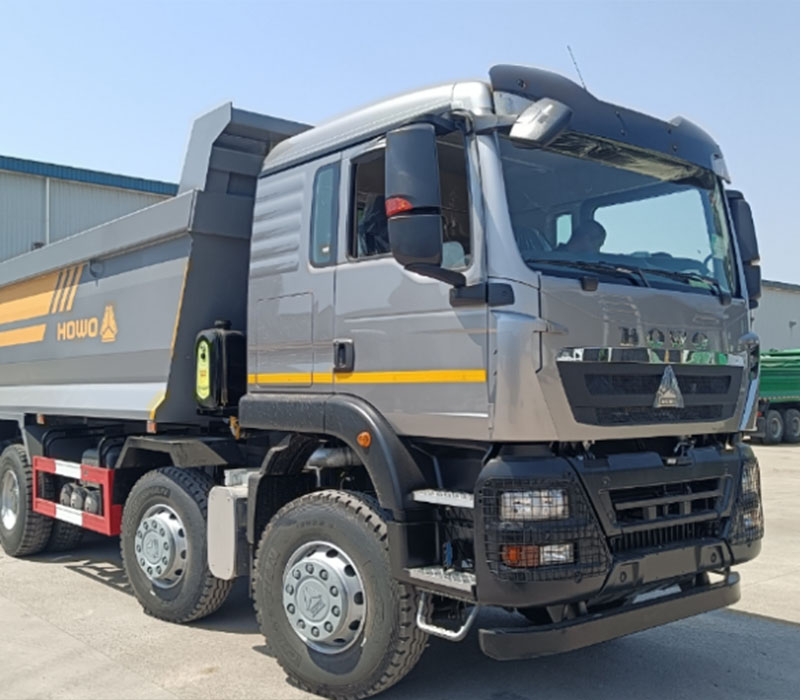

HOWO TX 8X4 400HP DUMP TRUCK
HOWO TX 8X4 400HP DUMP TRUCK
When the job demands maximum payload, the HOWO TX 8×4 400HP Dump Truck steps in with a 31-tonne capacity and a four-axle chassis built for the toughest large-scale mining and infrastructure sites. The 25–30CBM box, high-torque engine, and TX comfort cab make it the heaviest-duty option in the TX dump truck range.
- Product Type: Dump Truck
- Core Uses: Heavy-duty transportation and self-unloading of bulk materials such as earth, rock, sand, and gravel.
- Application Scenarios: Material transfer in large-scale mining operations, earthwork removal in infrastructure projects, urban waste transportation, material distribution at sand and gravel quarries, and earthwork operations in water conservancy projects.
- Load Capacity: Approximately 31 tons (rated gross vehicle weight approximately 40 tons)
-
Product Details
Product Features: 8×4 drive configuration for enhanced load-bearing capacity and maneuverability; 400hp high-torque diesel engine for ample power; high-strength heavy-duty chassis and reinforced axles; large-capacity cargo box (approximately 25-30 cubic meters); equipped with a hydraulic self-unloading system for efficient unloading; TX series high-comfort cab.
Main Advantages: Strong heavy-duty capacity, suitable for ultra-heavy-duty operations; robust and durable chassis, resistant to bumps and wear; fast power response; excellent climbing performance; convenient maintenance; highly versatile parts; adaptable to harsh working conditions such as mines and construction sites.
-
Shipping at China loading port
Drive type/Number of wheels/Number of axles: 8×4 / 12 wheels / 4 axles
Horsepower: 400HP
Transmission: (e.g., HW19712, 10F & 2R)
- HW19712, 12 forward gears + 2 reverse gears
Rear axle: HC16, 2×18000KGS (dual 18-ton wheel-side reduction axles)
Color: Engineering yellow, red, white (customizable)
Certifications: ISO/3C/BV/IFA/SGS
Packaging/Shipping Method: Bare vehicle or waxed, Ro-Ro or LCL shipping
Delivery Time: 45 working days after prepayment
Additional Services: Customized packaging and shipping methods, after-sales service, customized special configurations, color options
| Vehicle Model | ZZ3317V326GB1 |
| Engine Model | WEICHAI, WP12.400E201 |
| Net Power (kW) / Speed (r/min) | 294kW / 1900r/min |
| Maximum Torque (Nm) / Speed (r/min) | 1900Nm / 1000-1400r/min |
| Cabin | TX7 high-roof cab (with bunk, hydraulic tilting, air conditioner, multimedia system) |
| Rear Axle Model | HC16 tandem rear axle |
| Rear Axle Speed Ratio | 5.26 |
| Fuel Tank Capacity (L) | 400L |
| Frame Section (mm) | 320×90×8mm |
| Tires | 12.00R20 |
| Overall Dimension (L×W×H, mm) | 10000×2600×3450mm |
| Others | Hydraulic front/center tipping system, cargo box volume 25-30m³ customizable; optional ABS, retarder, power take-off, reverse camera, etc. |
