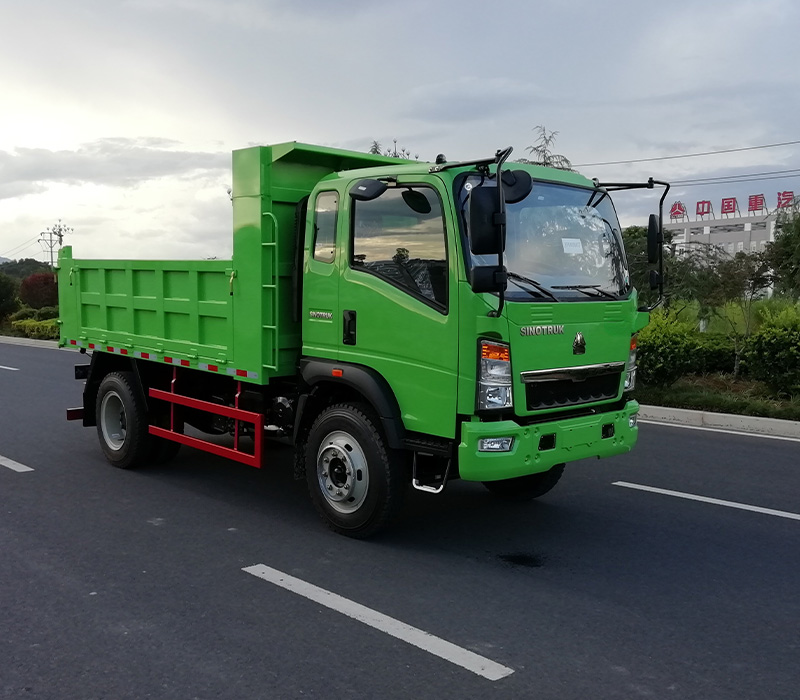

SINOTRUK 4X2 4m³ DUMP TRUCK
-
Product Details
Minimum Order Quantity: 1 Unit
Packaging Details: Nude or Waxing by RORO or Bulk ship
Delivery time: 50 working days after received your advance payment.
Payment Terms: L/C, T/T
Supply Ability: 4,000 units per month
| Item | SINOTRUK H3 4X2 4CBM Dump Truck |
| Color | Optional (Red, White, Yellow, Blue) |
| Driving type | LHD/RHD |
| Engine | Engine model: 110hp, Euro 2
6-cylinder in-line with water cooling, turbo-charging and intercooling. |
| Cabin | 1880 cabin, with one and half row sleeper (berth), Air-conditioner, MP3, safety belts, adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers, etc. |
| Transmission | 6 F and 1 R, manual.
Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction. |
| Steering | Power steering with hydraulic system. |
| Front Axle | 2800kg. |
| Rear Axles | 6500kg. |
| Wheelbase (mm) | 3200 |
| Braking System | Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrical System | Voltage: 24 V
Generator: 1540W Starter: 24 V, 7.5 Kw Batteries: 12V/165Ah, 2 pieces Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tire | 8.25R16, Steel wire tire, plus one spare tire (7 units) |
| Fuel tank | 120L volume |
| Dump box volume | 4m3, 3600x2000x600, bottom 4mm, side 3mm |
| External dimension | 6000x 2300×2700 mm |
