SINOTRUK 4 AXLES LOWBED SEMI-TRAILER
SINOTRUK 4 AXLES LOWBED SEMI-TRAILER
The standard 4 Axles Lowbed Semi-Trailer hits the practical sweet spot for long-distance machinery transfers — 60-tonne capacity, anti-slip deck for secure load fixing, and hydraulic ramps for quick self-propelled loading. Without the special-type complexity, it keeps maintenance simple while reliably handling excavators, wind turbine parts, and bridge components.
- Product Type: Low Flatbed Semi-Trailer
- Core Use: Long-distance transport of construction machinery and large equipment
- Application Scenarios: Transport of construction machinery, large equipment, wind power equipment, and bridge components
- Load Capacity: 60 tons
-
Product Details
Product Features: High-strength frame with strong torsional resistance; three-axle balanced suspension suitable for complex road conditions; heavy-duty axles with high load-bearing capacity; hydraulic ramp for easy loading and unloading; anti-slip flatbed for secure cargo.
Main Advantages: Easy maintenance and universal parts; high durability and long service life; strong adaptability to various working conditions; high load-bearing capacity and high transportation efficiency; simple operation and easy to learn.
-

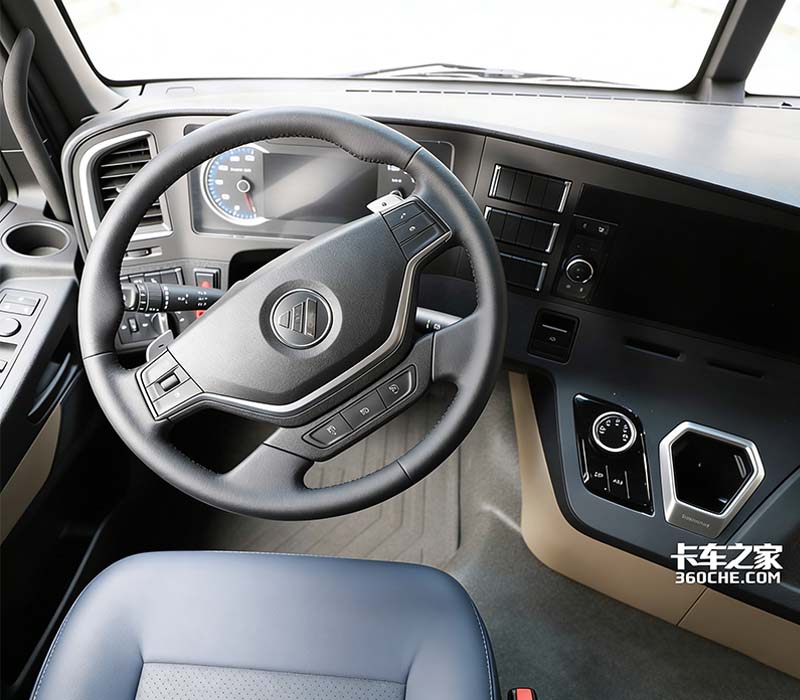

Shipping at China loading port
Drive type/Number of wheels/Number of axles: 6×4/10 wheels/3 axles
Horsepower: 380HP
Transmission: HW19712, 10-speed + 2-speed with high and low gears
Rear axle: HC16, 2×16000KGS
Colors: China Red, Light Gray, Dark Gray, Custom colors available
Certifications: ISO9001, 3C Certification, BV, SGS
Packaging/Shipping method: Vehicle only, Roll-on/Roll-off shipping
Delivery time: 45 working days after prepayment
Additional services: Customized modification, after-sales maintenance, color customization, logistics and distribution
| Vehicle Model | Tri-axle Low-bed Semi-trailer |
| Model (Engine) | WP10.340E50 |
| Net power (kW) / speed (r/min) | 250kW / 2200r/min |
| Maximum torque (Nm) / speed (r/min) | 1400Nm / 1400-1600r/min |
| Cabin | Standard with air suspension seat, air conditioner and central locking |
| Rear axle model | HD469 |
| Rear axle speed ratio | 4.111 |
| Oil tank (L) | 300L |
| Frame section (mm) | 300×80×8 |
| Tires | 12.00R20 All-steel radial tires |
| Overall Dimension (L×W×H, mm) | 13000×2550×1800 |
| Others | Standard with ABS, air suspension and spare tire carrier |
