SINOTRUK 4X2 4m³ DUMP TRUCK

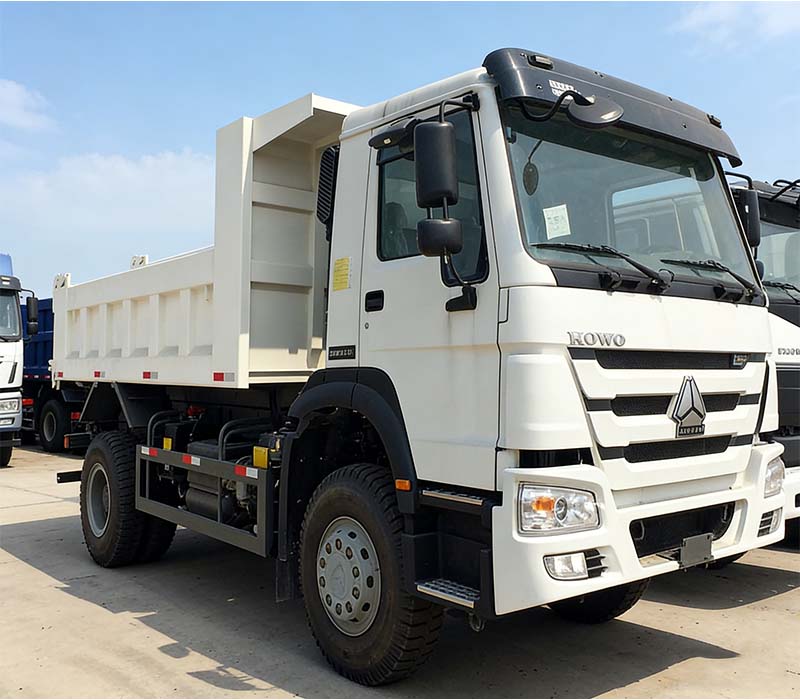

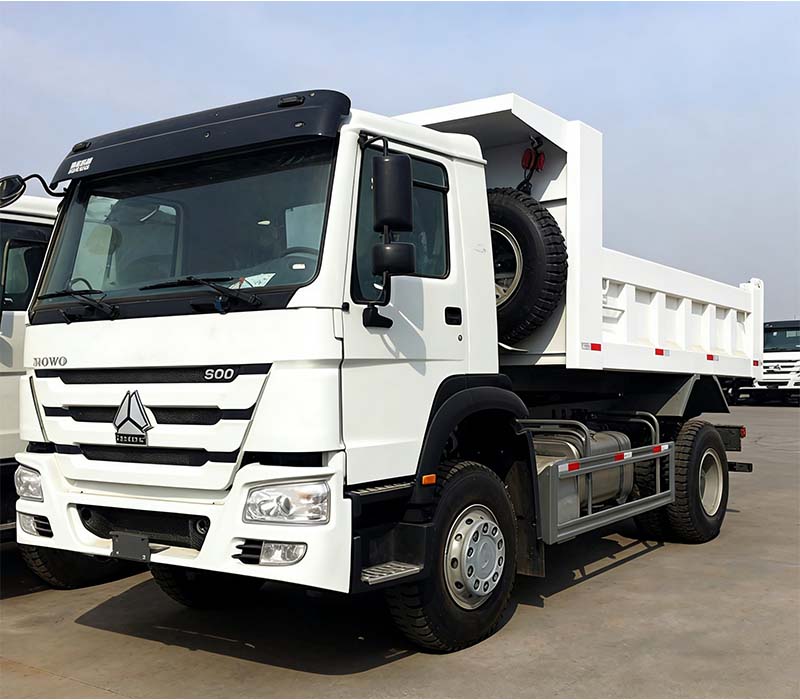

SINOTRUK 4X2 4m³ DUMP TRUCK
Not every job needs a 6×4 heavy-hauler. The SINOTRUK 4×2 4m³ Dump Truck is built for tight sites and short runs — an 8-tonne capacity, compact turning radius, and fuel-efficient drivetrain make it the practical, cost-effective choice for urban construction, rural road works, and small-scale earthmoving tasks.
- Product Type: Dump Truck
- Core Uses: Short-distance transportation and dumping of bulk materials such as earth, stone, sand, gravel, and slag
- Application Scenarios: Construction sites, mines, municipal engineering projects, slag transportation, rural road construction
- Load Capacity: 8000kg
-

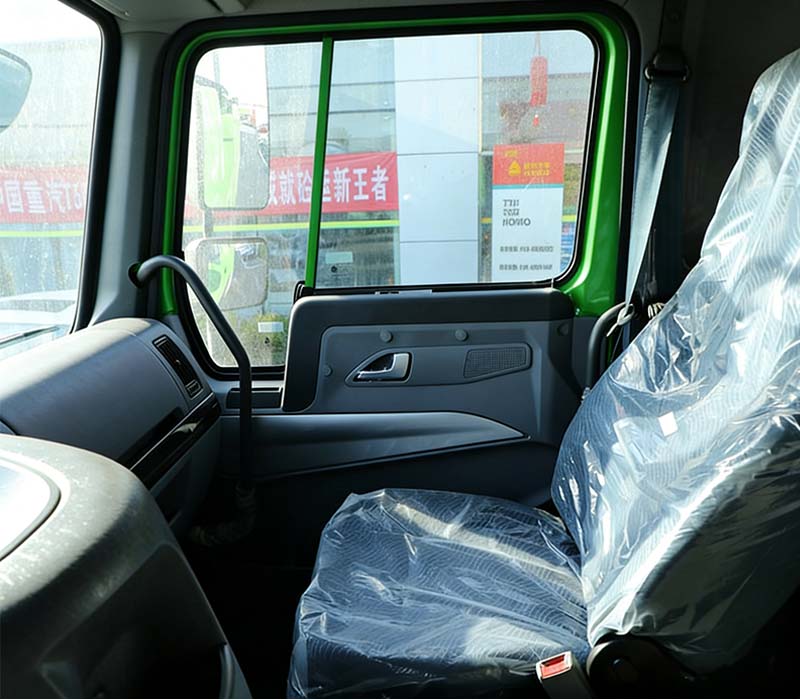

Product Details
Product Features:4x2 drive, 4m³ cargo box, hydraulic self-dumping, flexible operation, suitable for urban conditions
Main Advantages: Easy maintenance, economical fuel consumption, small turning radius, strong adaptability, high cost-effectiveness
-

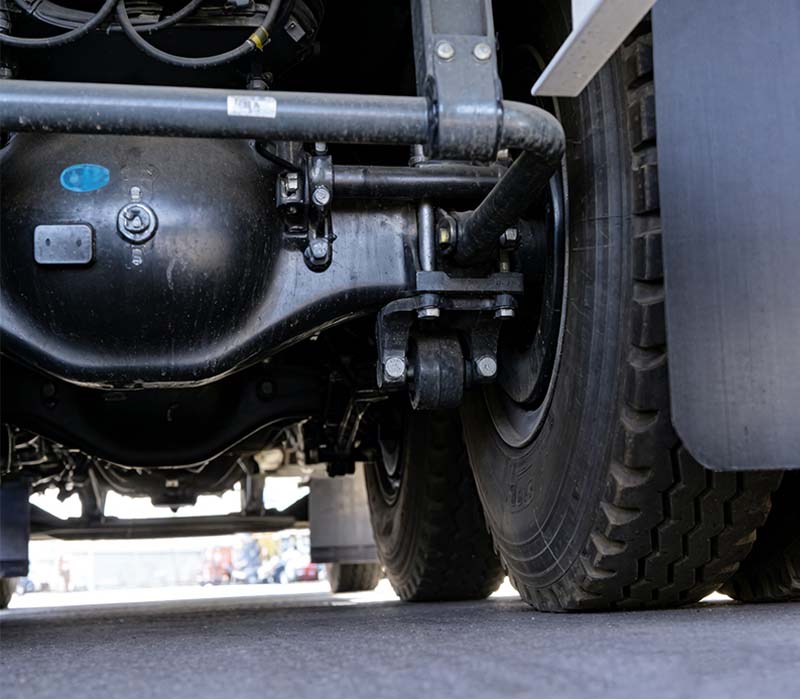

Shipping at China loading port
Drive type/Number of wheels/Number of axles: 4X2/6 wheels/2 axles
Horsepower: 290HP
Transmission: HW19710, 10F&2R
Rear axle: HC16, 1×16000KGS
Color: Engineering Yellow/Red/Custom colors
Certifications: ISO/3C/BV/IFA/SGS
Packaging/Shipping method: Vehicle transport, Ro-Ro/Bulk carrier
Delivery time: 45 working days after prepayment
Additional services: Packaging and shipping, after-sales service, special customization, color options
| Vehicle Model | ZZ3107N3817E1 |
| Model (Engine) | WD615.69 / WP6.240E50 |
| Net power (kW) / speed (r/min) | 180kW / 2200r/min |
| Maximum torque (Nm) / speed (r/min) | 1100N·m / 1400r/min |
| Cabin | Standard Cabin (HW76) |
| Rear axle model | HC16 |
| Rear axle speed ratio | 4.875 |
| Oil tank (L) | 200L |
| Frame section (mm) | 280×80×(6+4)mm |
| Tires | 9.00R20 |
| Overall Dimension (L×W×H, mm) | 6500×2300×2600mm |
| Others | Hydraulic Tipping System, 4m³ Cargo Box, Spare Tire Carrier |
