SINOTRUK 4X2 6m³ DUMP TRUCK

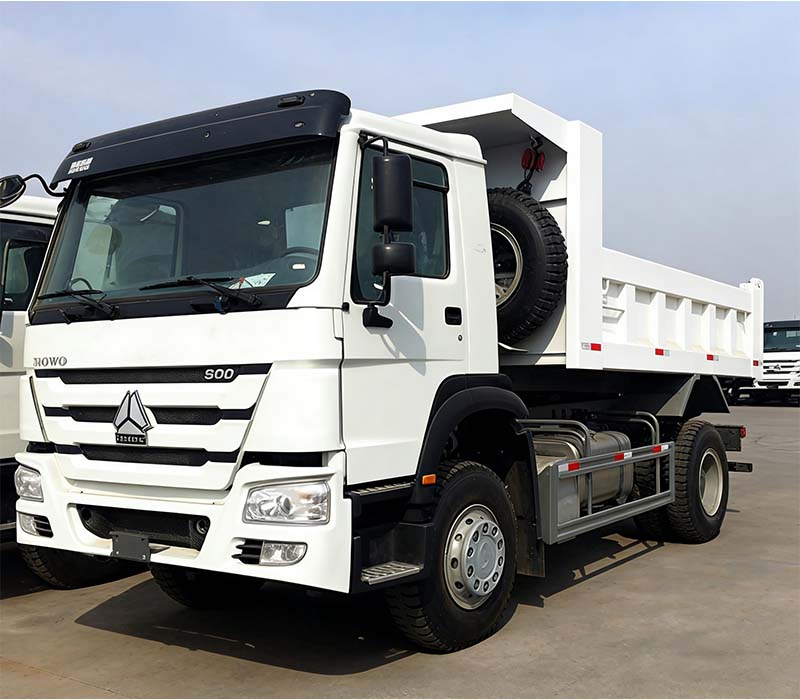

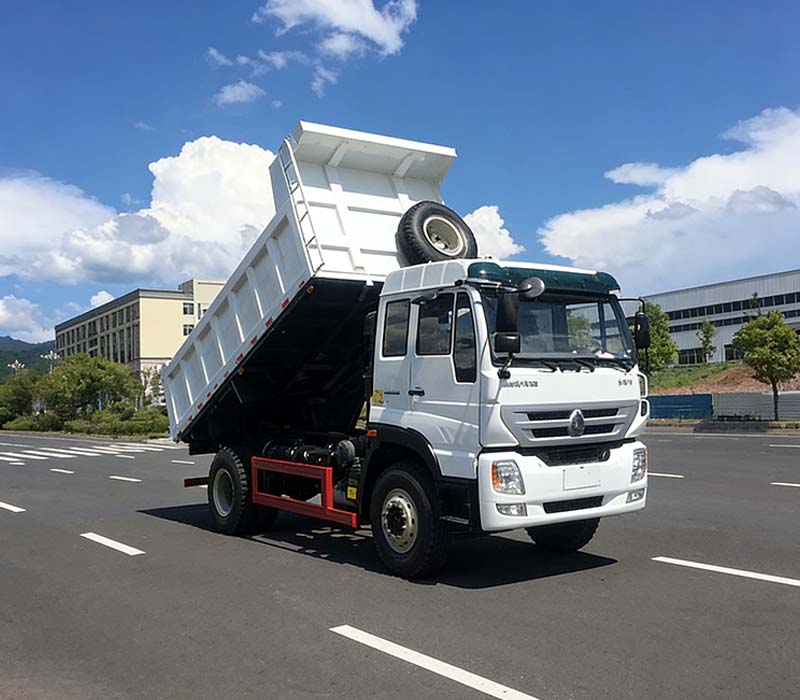

SINOTRUK 4X2 6m³ DUMP TRUCK
A step up from the 4m³ version, the SINOTRUK 4×2 6m³ Dump Truck carries 12 tonnes in a larger box while keeping the same nimble 4×2 footprint. It bridges the gap between compact site trucks and full heavy-haulers — more volume per run without sacrificing the manoeuvrability urban and rural job sites demand.
- Product Type: Dump Truck
- Core Uses: Short-distance transportation and dumping of bulk materials such as earth, stone, sand, gravel, and slag
- Application Scenarios: Construction sites, municipal engineering, mining, slag transportation, rural road construction
- Product Features: 4x2 drive, 6m³ large-capacity cargo box, hydraulic self-dumping, flexible operation, suitable for urban conditions
- Main Advantages: Easy maintenance, economical fuel consumption, small turning radius, strong adaptability, high cost performance
- Load Capacity: 12000kg
-
Product Details
Drive type/Number of wheels/Number of axles: 4×2/10 wheels/3 axles
Horsepower: 220HP
Transmission: HW19712, 10F&2R
Rear axle: HC16, 2×16000KGS
Color: Engineering Yellow, White, Red (Custom colors available)
Certifications: ISO9001, 3C Certification, BV, SGS
Packaging/Shipping method: Vehicle transport only, Ro-Ro shipping
Delivery time: 45 working days after prepayment
Additional services: Packaging and shipping, after-sales service, special customization, color selection
Product supplementary information
| Vehicle Model | ZZ3127N35171 |
| Model (Engine) | WP4.1N200E50 |
| Net power (kW) / speed (r/min) | 147kW / 2200r/min |
| Maximum torque (Nm) / speed (r/min) | 600Nm / 1400~1600r/min |
| Cabin | Wide-body Luxury Cabin |
| Rear axle model | HC16 |
| Rear axle speed ratio | 4.875 |
| Oil tank (L) | 200L |
| Frame section (mm) | 300×80×(6+4)mm |
| Tires | 11.00R20 |
| Overall Dimension (L×W×H, mm) | 7200×2500×3200mm |
| Others | Hydraulic Tipping System, Cargo Box Lifting Control, Spare Tire Carrier |
