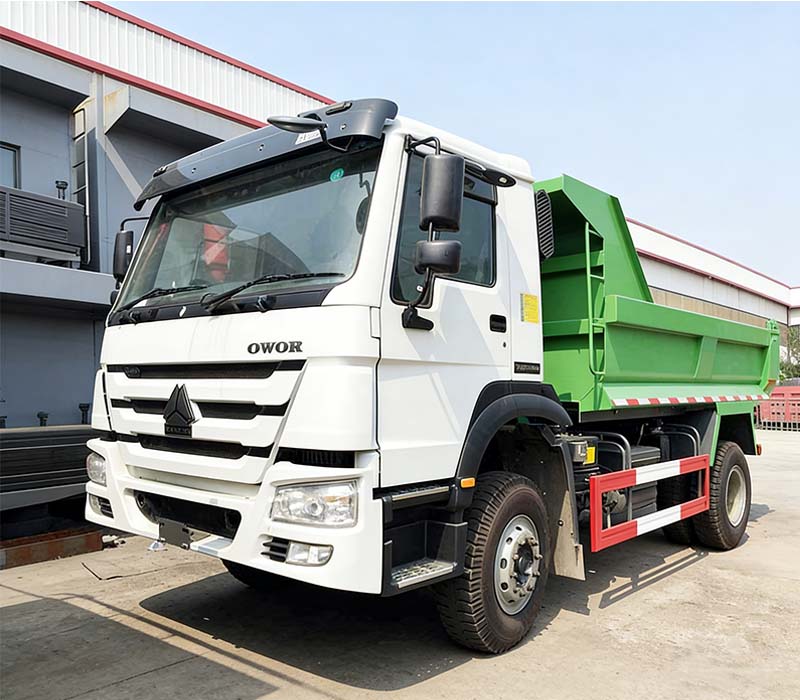

SINOTRUK 4X2 10m³ DUMP TRUCK
SINOTRUK 4X2 10m³ DUMP TRUCK
The SINOTRUK 4×2 10m³ Dump Truck is the largest-box option in the 4×2 dump range — 10 cubic metres of capacity on a 12-tonne chassis that still handles tight sites better than a full 6×4. For contractors who need maximum volume without stepping up to a heavy-duty drivetrain, this is the ceiling.
- Product Type: Dump Truck
- Core Uses: Suitable for transporting and unloading bulk materials such as earth, rock, and construction waste.
- Application Scenarios: Construction sites, mining operations, municipal engineering, rural road renovation, and construction waste removal sites.
- Load Capacity: 12000kg
-
Product Details
Product Features: 4×2 drive, 10m³ cargo box volume, hydraulic self-unloading system, robust and durable, adaptable to complex road conditions.
Main Advantages: High operating efficiency, high reliability, convenient maintenance, strong adaptability, and safe and reliable.
-
Shipping at China loading port
Drive type/Number of wheels/Number of axles: 4×2/10 wheels/3 axles
Horsepower: 380 HP
Transmission: HW19712, 10F&2R
Rear axle: HC16, 2×16000KGS
Color: White (customizable)
Certifications: ISO9001, 3C, BV, SGS
Packaging/Shipping method: Vehicle transport, Ro-Ro shipping
Delivery time: 45 working days after prepayment
Additional services: Full vehicle transport, after-sales service, customized modifications, color customization
| Vehicle Model | SINOTRUK 4X2 10m³ DUMP TRUCK |
| Model (Engine) | WD615.47 |
| Net power (kW) / speed (r/min) | 220kW / 2200r/min |
| Maximum torque (Nm) / speed (r/min) | 900Nm / 1400r/min |
| Cabin | Wide-body Luxury Cabin with Air Conditioner |
| Rear axle model | HC16 |
| Rear axle speed ratio | 4.875 |
| Oil tank (L) | 300L |
| Frame section (mm) | 280×80×(6+4)mm |
| Tires | 12.00R20 |
| Overall Dimension (L×W×H, mm) | 7200×2500×3200mm |
| Others | Hydraulic Tipping System, Spare Tire Carrier, Guardrail |
