SINOTRUK HOWO 6X4 CONCRETE PUMP TRUCK

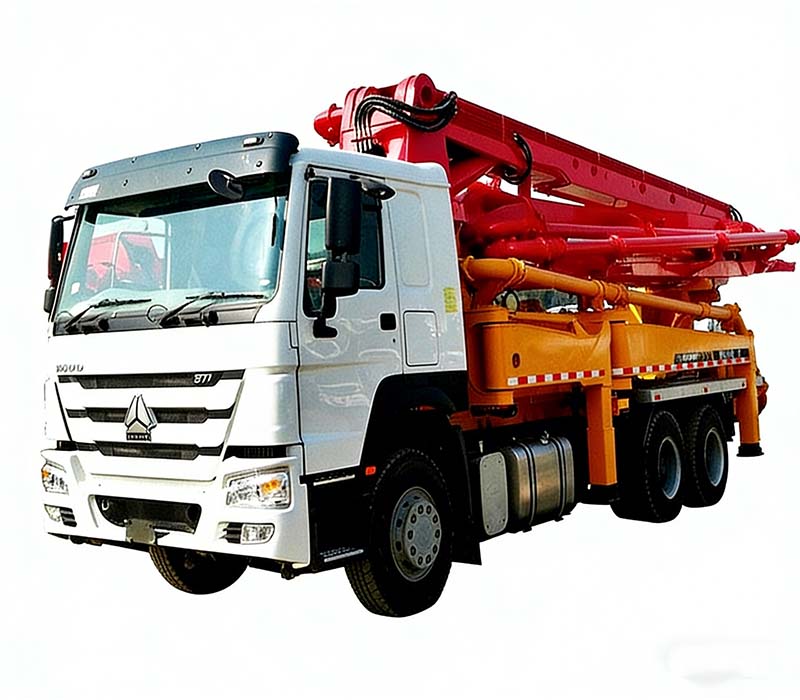

SINOTRUK HOWO 6X4 CONCRETE PUMP TRUCK
The SINOTRUK HOWO 6×4 Concrete Pump Truck puts concrete exactly where it needs to go — high floors, bridge decks, and tunnel walls that mixer trucks can't reach. With a pumping output of 180m³/h or more, wear-resistant delivery pipes, and remote operation, it keeps large pours running without interruption.
- Product Type: Concrete Pump Truck
- Core Use: High-pressure pumping and pouring of concrete.
- Application Scenarios: High-rise buildings, bridge construction, tunnel engineering, large-scale infrastructure projects, municipal construction sites.
- Load Capacity: Pumping displacement ≥ 180 m³/h
-

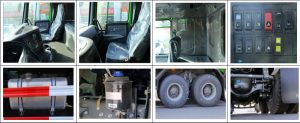

Product Details
Product Features: 6×4 drive, large-displacement hydraulic pump, high outrigger stability, remote control, wear-resistant delivery pipe.
Main Advantages: High pumping efficiency, strong adaptability, safe operation, convenient maintenance, and stable continuous material supply.
-
Shipping at China loading por
Drive type/Number of wheels/Number of axles: 6×4 / 10 wheels / 3 axles
Horsepower: 430HP
Transmission: HW19712, 10F & 2R
Rear axle: HC16, 2×16000KGS
Color: Engineering Yellow, White (optional)
Certifications: ISO, 3C, BV, IFA, SGS, CCC
Packaging/Shipping method: Vehicle only
Delivery time: 45 working days after prepayment
Additional services: Full vehicle transportation, after-sales maintenance, customized modifications, color customization
| Vehicle Model | XYZ-123 |
| Model (Engine) | WP10.340E50 |
| Net power (kW) / speed (r/min) | 250kW / 2200r/min |
| Maximum torque (Nm) / speed (r/min) | 1500N·m / 1400r/min |
| Cabin | Luxury Cabin |
| Rear axle model | HC16 |
| Rear axle speed ratio | 4.11 |
| Oil tank (L) | 300L |
| Frame section (mm) | 300×80×(8+4) mm |
| Tires | 11R22.5 |
| Overall Dimension (L×W×H, mm) | 8000×2500×3200mm |
| Others | Chassis & Load Capacity: HC16 rear axle + 4.11 gear ratio, balancing load capacity and driving efficiency; 300L fuel tank meets long-range cruising requirements. |
OUR PRODUCTS
Best-selling Products
SINOTRUK HOWO 6X4 HOOK ARM GARBAGE TRUCK
The hook arm system gives this truck an operational edge — the SINOTRUK HOWO 6×4 Hook Arm Garbage Truck drops off a full container, picks up an empty one, and keeps moving. With 10–18m³ box compatibility and a heavy-duty 6×4 chassis, it suits high-volume multi-point collection routes that can't afford downtime.
SINOTRUK HOWO 6X4 FIRE FIGHTING TRUCK
When seconds count, the SINOTRUK HOWO 6×4 Fire Fighting Truck delivers. Built on a heavy-duty 6×4 chassis with strong wading capability and rapid response performance, it handles fire suppression and emergency rescue across urban streets, industrial zones, highways, and high-rise sites where reliability is non-negotiable.
SINOTRUK HOWO 4X2 10m³ SKIP GARBAGE TRUCK
The SINOTRUK HOWO 4×2 10m³ Skip Garbage Truck keeps urban waste collection moving with a swing-arm mechanism that swaps containers quickly without manual handling. A stable hydraulic system, lightweight build, and compatibility with multiple skip types make it a practical daily workhorse for residential estates, industrial parks, and municipal sanitation routes.
SINOTRUK SIDE LIFTING CONTAINER TRAILER WITH CRANE
Two functions on one chassis — the onboard crane loads and unloads containers without a forklift or yard crane, while the side-tipping mechanism handles bulk discharge on site. At 40 tonnes, it operates independently wherever standard container handling equipment isn't available, cutting turnaround time at ports, warehouses, and construction yards.
SINOTRUK HOWO 8X4 CONCRETE PUMP TRUCK
The 8×4 chassis is what separates this from the 6×4 version — four axles carry the added weight of a larger boom and pump assembly, pushing output capacity up to handle the biggest high-rise, bridge, and tunnel pours where the 6×4 reaches its limits. Built for sites where volume and reach both matter.

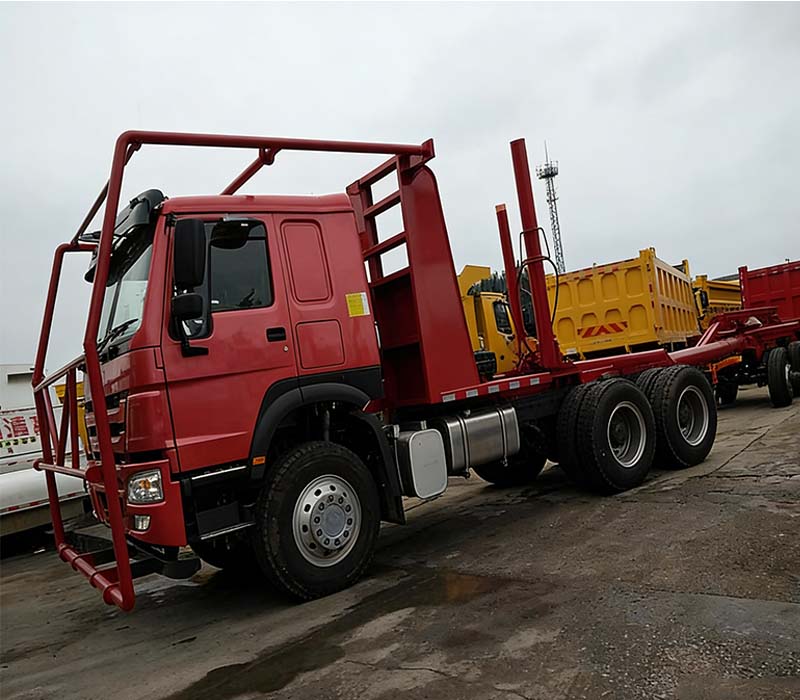

SINOTRUK HOWO 6X4 LOGGING TRANSPORTATION TRUCK
