SINOTRUK HOWO 6X4 HOOK ARM GARBAGE TRUCK
SINOTRUK HOWO 6X4 HOOK ARM GARBAGE TRUCK
The hook arm system gives this truck an operational edge — the SINOTRUK HOWO 6×4 Hook Arm Garbage Truck drops off a full container, picks up an empty one, and keeps moving. With 10–18m³ box compatibility and a heavy-duty 6×4 chassis, it suits high-volume multi-point collection routes that can't afford downtime.
- Product Type: Hooklift Garbage Truck
- Core Uses: Collection, transfer, and multi-container cyclical operation of municipal solid waste.
- Application Scenarios: City streets, residential properties, industrial parks, sanitation stations, municipal roads.
- Load Capacity: 10-18 cubic meters
-

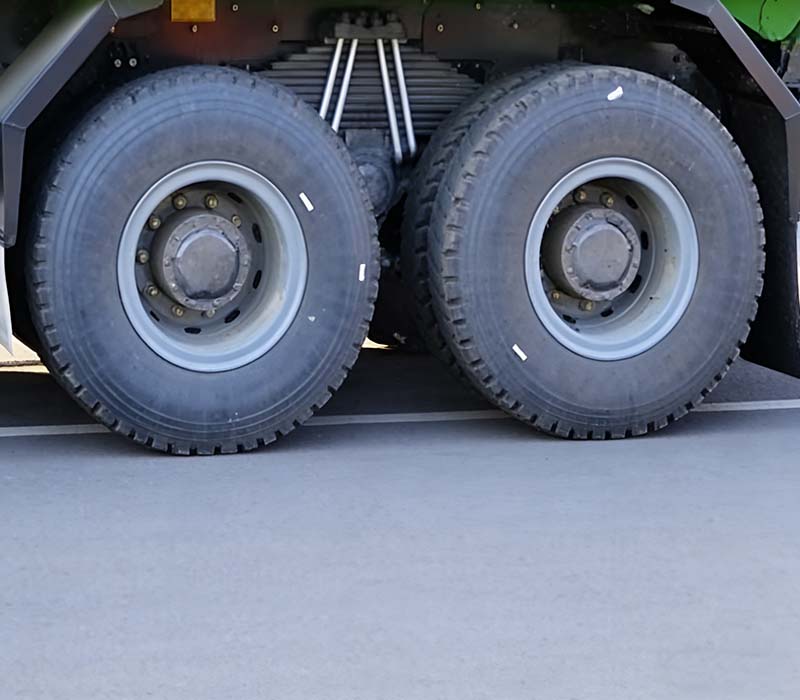

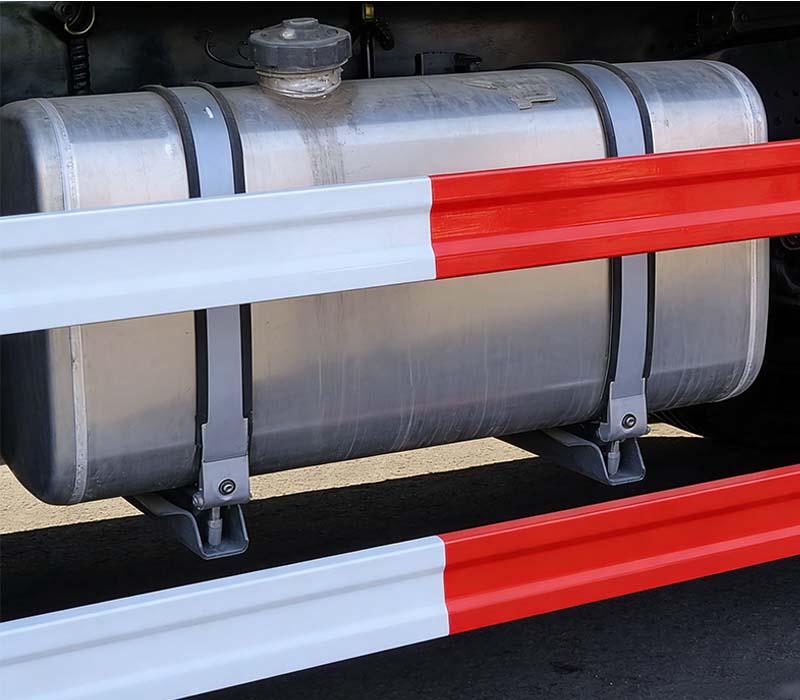

Product Details
Product Features: 6×4 drive, hydraulic hooklift system, multi-container adaptability, easy operation, heavy-duty chassis.
Main Advantages: High loading efficiency, strong adaptability, convenient maintenance, low transfer cost, safe and reliable.
-
Shipping at China loading port
Drive type/Number of wheels/Number of axles: 6×4 / 10 wheels / 3 axles
Horsepower: 340HP
Transmission: HW19712, 10F&2R
Rear axle: HC16, 2×16000KGS
Color: Engineering Yellow / White (optional)
Certifications: ISO9001 / 3C / BV / SGS
Packaging/Shipping method: Unpacked vehicle, Ro-Ro/Bulk carrier
Delivery time: 45 working days after prepayment
Additional services: Export packaging, after-sales maintenance, customized modification, color selection
| Vehicle Model | ZZ5257VJCC404HE1 |
| Model (Engine) | WP10.340E50 |
| Net power (kW) / speed (r/min) | 250kW / 2200r/min |
| Maximum torque (Nm) / speed (r/min) | 1400Nm / 1200-1600r/min |
| Cabin | Luxury Cabin (with Air Conditioner & Air Suspension Seat) |
| Rear axle model | HC16 Dual Rear Axle |
| Rear axle speed ratio | 4.8 |
| Oil tank (L) | 400L |
| Frame section (mm) | 300×80×(8+4)×180mm |
| Tires | 12.00R20 Steel Wire Tires |
| Overall Dimension (L×W×H, mm) | 9600×2500×3200mm |
| Others | Equipped with Hydraulic Lifting Mechanism & Remote Control Handle |
