HOWO TX 6×4 22000L WATER TANK TRUCK

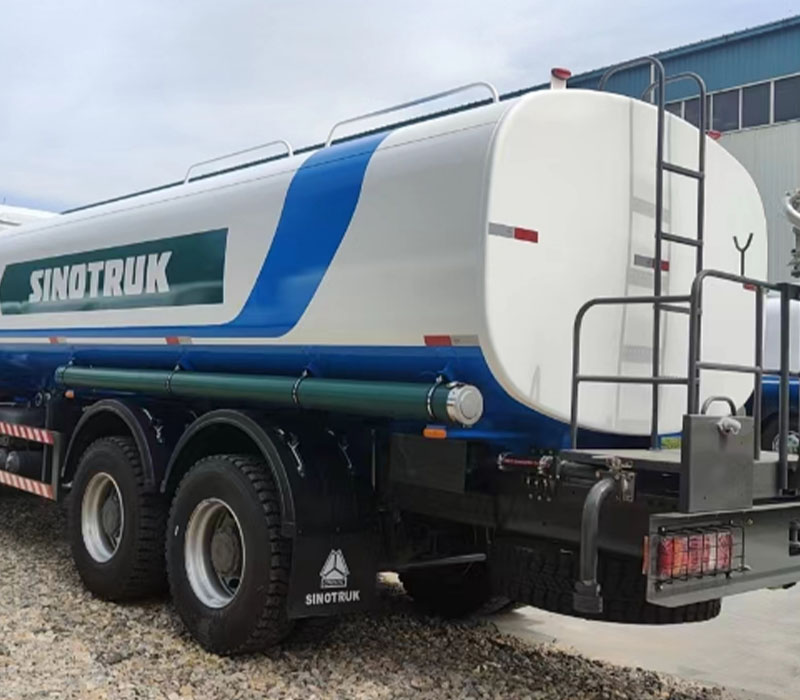

HOWO TX 6×4 22000L WATER TANK TRUCK
With a 22000L tank and a full suite of spray options — front jet, rear spray, side nozzles, and a high-pressure cannon — the HOWO TX 6×4 covers more ground per run than lighter alternatives. Cab-controlled operation, a corrosion-treated tank, and the dependable TX chassis make it a serious tool for large-scale municipal and emergency water work.
- Product Type: Water Sprinkler Truck / Water Transport Truck (Tank-type Sanitation Truck)
- Core Uses: Used for urban road watering, landscaping, emergency water supply, and construction site dust suppression.
- Application Scenarios: Urban road sweeping and dust suppression, landscaping irrigation and maintenance, construction site dust suppression, emergency water transport in drought-stricken areas, fire emergency water supply.
- Load Capacity: Approximately 25 tons
-
Product Details
Product Features: 6×4 drive configuration, strong load-bearing capacity, adaptable to complex road conditions; 22000L large-capacity carbon steel/stainless steel tank, corrosion-resistant and durable; HOWO TX chassis, powerful and stable operation; equipped with front spray, rear spray, side spray, and high-pressure water cannon, comprehensive functions; high-power water pump, long spraying distance, high efficiency; meets National V/National VI emission standards, environmentally compliant.
Main Advantages: Large tank volume, wide coverage area per operation; diverse spraying modes to adapt to different scenario needs; high chassis reliability, low maintenance cost; easy operation, spraying can be controlled from inside the cab; anti-corrosion treatment of the tank body, long service life.
-
Shipping at China loading port
Drive type/Number of wheels/Number of axles: 6×4 / 10 wheels / 3 axles
Horsepower: 340HP
Transmission: HW19712, (10F&2R)
Rear axle: HC16, 2×16000KGS
Color: Engineering Yellow / White / Blue / Green (Other colors available upon request)
Certifications: ISO9001 / 3C / BV / SGS
Packaging/Shipping method: Bare vehicle or waxed protection, Ro-Ro or bulk carrier shipping
Delivery time: 45 working days after prepayment
Additional services: Customized packaging and shipping solutions, nationwide warranty and after-sales service, special customization of tank material/spraying function, optional vehicle body color
| Vehicle Model | ZZ5257GSSN384HE |
| Engine Model | MCO7.34-40 / WD615.34 |
| Net Power (kW) / Speed (r/min) | 250kW / 1900-2100r/min (340HP) |
| Maximum Torque (Nm) / Speed (r/min) | 1400Nm / 1200-1600r/min |
| Cabin | TX high-roof cab, with four-point suspension, air conditioner and bunk |
| Rear Axle Model | HC16 |
| Rear Axle Speed Ratio | 4.42 |
| Fuel Tank Capacity (L) | 400L |
| Frame Section (mm) | 280×80×8+8mm |
| Tires | 11.00R20 |
| Overall Dimension (L×W×H, mm) | 9000×2600×3300mm |
| Others | Tank material: carbon steel / stainless steel optional, capacity 22000L
Spraying function: front flushing, rear sprinkling, side sprinkling, high-pressure water cannon Emission standard: China V / China VI Brake system: ABS+ASR, drum brake |
