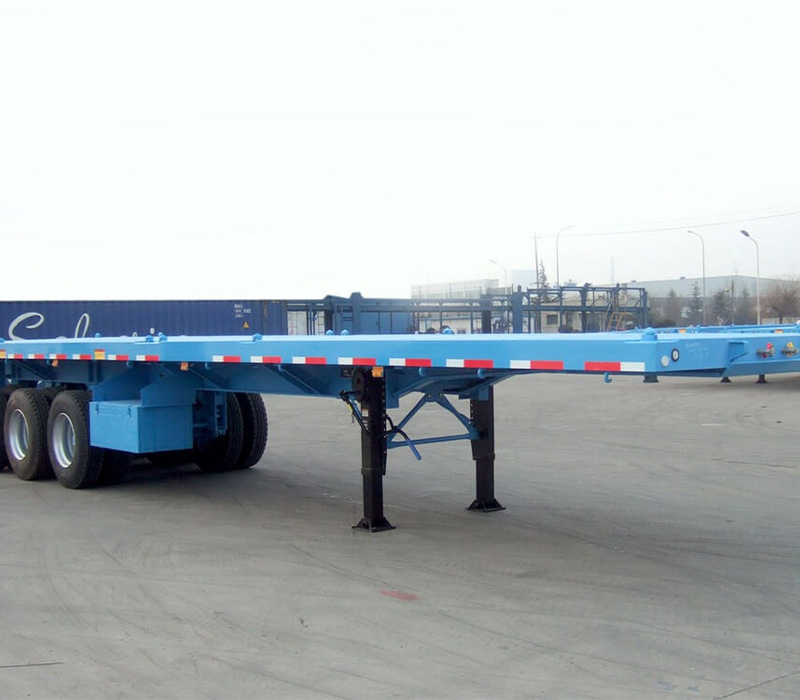

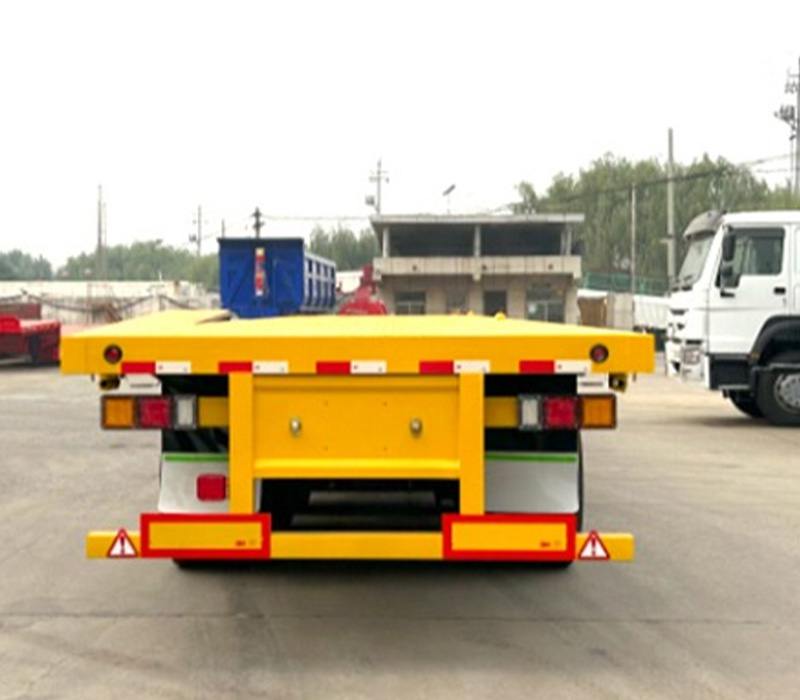

SINOTRUK 4 AXLES FLATBED TRAILER
The SINOTRUK 4 Axles Flatbed Trailer takes the versatility of the three-axle flatbed and raises the stakes — 60-tonne rated capacity, a fourth axle for greater load stability, and a lightweight structure that keeps fuel costs in check on long inter-city hauls carrying containers, industrial equipment, and bulk construction materials.
- Product Type: Flatbed Semi-Trailer
- Core Uses: Long-distance road transport of large cargo, containers, and standard goods
- Usage Scenarios: Port container transshipment, long-distance transport of industrial equipment, bulk road distribution of building materials, trunk line transport of supermarket goods, and transshipment of engineering materials
- Durable structure and long service life.
- Load Capacity: Rated load 60,000 kg
-
Product Details
Product Features: Four-axle design for strong load-bearing stability; high-strength flatbed frame for excellent torsional resistance; adaptable to various types of containers and cargo; hydraulic outriggers for convenient loading and unloading; disc brake system for reliable braking; lightweight structure for reduced fuel consumption.
Main Advantages: Low maintenance costs; high parts versatility; high transport efficiency; large loading capacity; strong adaptability, covering multiple transport scenarios.
-
Shipping at China loading port
Drive type/Number of wheels/Number of axles: None / 16 wheels / 4 axles
Horsepower: None (semi-trailer has no engine horsepower)
Transmission: None (semi-trailer has no transmission)
Rear axle: BPW 20T, 4×20000KGS
Color: Sinotruk Red / Customizable
Certifications: ISO9001, 3C, BV, SGS
Packaging/Shipping method: Bare truck, Ro-Ro shipping
Delivery time: 45 working days after prepayment
Additional services: Customized packaging, nationwide warranty, special modifications, multiple colors available
| Vehicle Model | SINOTRUK 4 AXLES FLATBED TRAILER |
| Engine Model | None (No engine for semi-trailer) |
| Net Power (kW) / Speed (r/min) | None |
| Maximum Torque (Nm) / Speed (r/min) | None |
| Cabin | None (No cab for semi-trailer) |
| Rear Axle Model | BPW 20T |
| Rear Axle Speed Ratio | None |
| Fuel Tank Capacity (L) | None |
| Frame Section (mm) | 300×80×[8+5]mm |
| Tires | 12.00R20 |
| Overall Dimension (L×W×H, mm) | 14500×2550×1550mm |
| Others | Standard configuration: ABS, container twist locks, hydraulic landing gear |
